風淋室使用標準規范（中英文對照完整版）

Air ShowerWI

1. 目的 Purpose：

保證風淋室正確、安全的使用，確保其使用壽命。

Ensure the air Shower correct and safe use, to ensure that their service life.

2. 范圍 Scope：

一般生產廠房無塵車間。

Clean room of company.

3. 職責 Responsibility：

所有進出風淋室的人員。

Air Shower in and out of all the staff.

4. 操作程序 Operating Procedures：

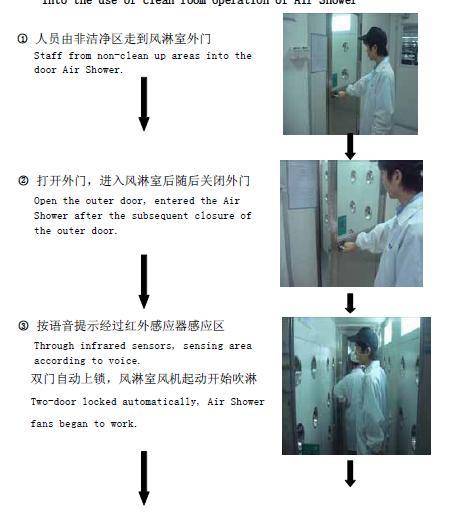

4.1 進入無塵車間時使用風淋室操作方法：

Into the use of clean room operation of Air Shower

（1） 人員由非潔凈區走到風淋室外門

Staff from non-clean up areas into thedoor Air Shower.

（2）打開外門，進入風淋室后隨后關閉外門

Open the outer door, entered the AirShower after the subsequent closure of the outer door.

（3）按語音提示經過紅外感應器感應區雙門自動上鎖，風淋室風機起動開始吹淋

Through infrared sensors, sensing area according to voice.Two-door locked automatically, Air Shower fans began to work.

（4） 按設定的時間吹淋完后，按語音提示打開內門進入潔凈室

Time set by the wind after the shower,according to the voice inside to open the door into the clean room.

4.2 注意事項 Notes

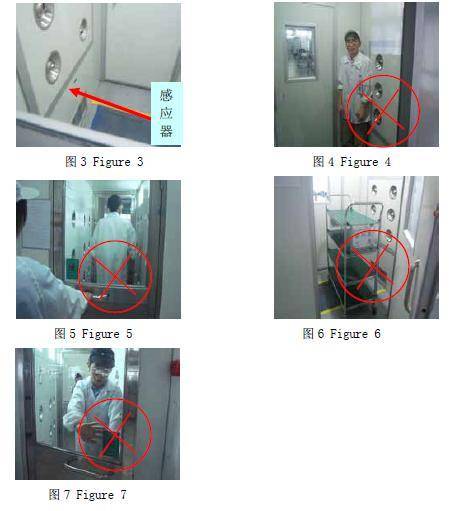

4.2.1進入風淋室前需看清里面是否有人（風淋系統工作時，不能用力使勁去推拉門，更不能強制性地將門打開，否則電鎖會被損壞）<如圖5>。

We need to see whether there have people before entering Air Shower(shower system, can not be forced to push and pull the door hard, but not mandatory open the door, or electric lock will be damaged) <Figure 5>

4.2.2進出門時不要用手推玻璃，以免玻璃破碎后傷人（如圖7）。

Do not push the glass door when you go out/into the air shower, so as to avoid the injury after broken glass(Figure 7)

4.2.3進入風淋室后需先將門關好后再站在感應區內，尤其是多人一起進入的時候，關好門后再去感應并啟動風淋門。

Air Shower after entering the need to close the door first and then induced to stand in the sensor area, especially the people together, and then close the door to start the air shower.

4.2.4站在風淋室內接受風淋時不要避開風淋（如圖4）。

Indoor Air Shower standing shower when the wind will not accept to avoid Air Shower.

(Figure 4)

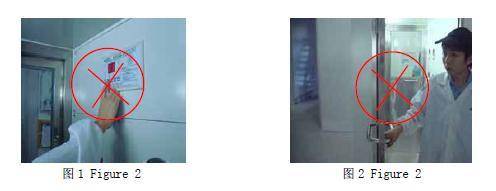

4.2.5嚴禁任何非專業設備人員對風淋室的任一技術參數進行調整設置(如圖1)。

Prohibit any non-professional equipment for the staff of the Air Shower any of the technical parameters to adjust settings. (Figure 1)

4.2.6不可隨便更改風嘴的吹風方向。

Can not be changed in the direction of the wind mouth.

4.2.7進出門時必須輕拉推門把手，不要將門的開度打開至極限，以免造成門、門鎖、閉門器的損壞。（如圖2）

When we have to go out into the shower push pull door handles, do not open the doors opening to the limit in order to avoid the door, door locks, closed-door's damage. (Figure 2)

4.2.8大件物品，如料車、推車等進出不可走風淋室（如圖6），需走另一邊的大門。

Large items such as materials cart, the cart etc. can not go in and out Air Shower (Figure 6), the need to take the other side of the door.

4.2.9設備部設備人員應每日點檢風淋室的運行狀況，若有異常，及時上報工程師處理。

Department of Equipment employee should be checked daily at the Air Shower operation, ifunusual, reported in a timely manner to deal with engineers.
